TPX Scissor Lift  Get Pricing

This 3,250-lb. (1,474kg) zero turn, towable/drivable scissor lift features auto-leveling and both slab and rough-terrain capabilities.
  • Towable by vehicle using a 2-in. ball hitch and 3500 lbs tow rating

TPX Specs

  • TPX is electric powered or 24 VDC System
  • Self-driven with platform controls
  • Drive in all weather conditions
  • Zero turning radius
  • Travel speeds up to 3 MPH (5km/h) on multiple surfaces
  • AC power to platform standard
  • Folding rail system standard
  • 28' working height (8.54m)
  • 24 VDC system with four heavy-duty, group 31 batteries
  • On-board battery charger
  • Forklift loadable
  • Towable at highway speeds
  • No trailer required
  • 3250 lbs. (1474.2kg)

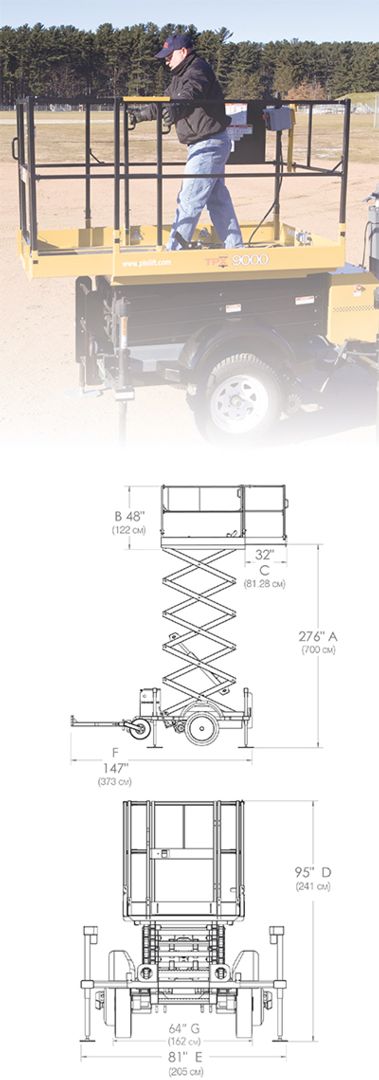

Operating Dimensions

  • 28' maximum work height (8.54m)
  • 23' maximum platform height (7.01m) (A)
  • 750 lb. safe work load (340kg)
  • 102" overall operating length (3.05m)

Platform Dimensions

  • 64" long x 48" wide (1.62m x 1.22m)
  • 48" guard rail height (1.22m) (B)
  • 32" extension roll out (0.81m) (C)
  • 6" toe board (152mm)

Machine Dimensions

  • 95" stowed height (2.41m) (D)
  • 96" platform length extended (2.46m)
  • 64" width outriggers retracted (1.62m)
  • 147" overall towing length (3.73m) (F)
  • Outrigger foot print
    • 81" x 77" deployed (2.05m x 1.95m)(E)
    • 10.5" ground clearance (267mm)
TXP Scissor Lift zero turn, towable/drivable scissor lift features auto-leveling and both slab and rough-terrain capabilities.
